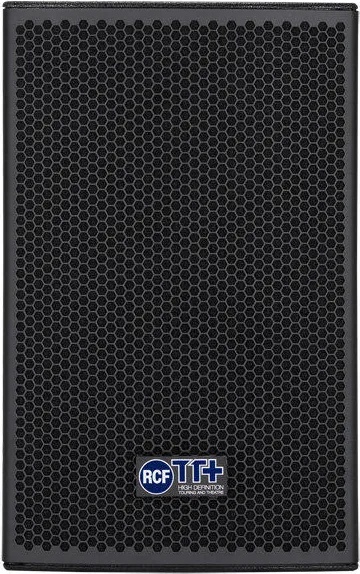

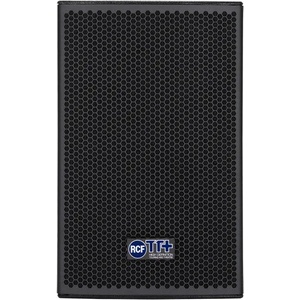

TT08-A -750 W, 8"1" - АКТИВНА ТОНОКОЛНА LINE ARRAY
FEATURES
750 W power switching amplifiers
Wide, constant directivity, coverage angle
High power 64 mm coil neodymium woofer
44 mm coil titanium compression driver
High quality analog input board
Soft limiter and RMS protection
Maximum output per size available on the market
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:65 Hz ÷ 20000 Hz
Max SPL:128 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1.0 " neo, 44 mm voice coil
Woofer:8" neo, 64 mm voice coil
INPUT/OUTPUT SECTION
Input signal:Bal/unbal
Input connectors:XLR
Output connectors:XLR
Input sensitivity:-2 dBu / + 4 dBu
PROCESSOR SECTION
Crossover frequencies:1700 Hz
Protections:Thermal, HF
Limiter:RMS, fast limiter
Controls:Side/ floor coupling
AMPLIFIER SPECIFICATIONS
Total power:750 W RMS
High frequencies:D/250 W RMS
Low frequencies:D/500 W RMS
Cooling:Convection
Connections:Powercon in/out
CABINET
Cabinet Material:Baltic birch
Hardware:2 x fly tracks
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:430 / 16.93 mm/inch
Width:270 / 10.63 mm/inch
Depth:303 / 11.93 mm/inch
Net Weight:11.4 / 25.13 kg/lbs
FEATURES
750 W power switching amplifiers
Wide, constant directivity, coverage angle
High power 64 mm coil neodymium woofer
44 mm coil titanium compression driver
High quality analog input board
Soft limiter and RMS protection
Maximum output per size available on the market
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:65 Hz ÷ 20000 Hz
Max SPL:128 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1.0 " neo, 44 mm voice coil
Woofer:8" neo, 64 mm voice coil
INPUT/OUTPUT SECTION
Input signal:Bal/unbal
Input connectors:XLR
Output connectors:XLR
Input sensitivity:-2 dBu / + 4 dBu
PROCESSOR SECTION
Crossover frequencies:1700 Hz
Protections:Thermal, HF
Limiter:RMS, fast limiter
Controls:Side/ floor coupling
AMPLIFIER SPECIFICATIONS
Total power:750 W RMS
High frequencies:D/250 W RMS
Low frequencies:D/500 W RMS
Cooling:Convection
Connections:Powercon in/out
CABINET
Cabinet Material:Baltic birch
Hardware:2 x fly tracks
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:430 / 16.93 mm/inch
Width:270 / 10.63 mm/inch
Depth:303 / 11.93 mm/inch
Net Weight:11.4 / 25.13 kg/lbs
